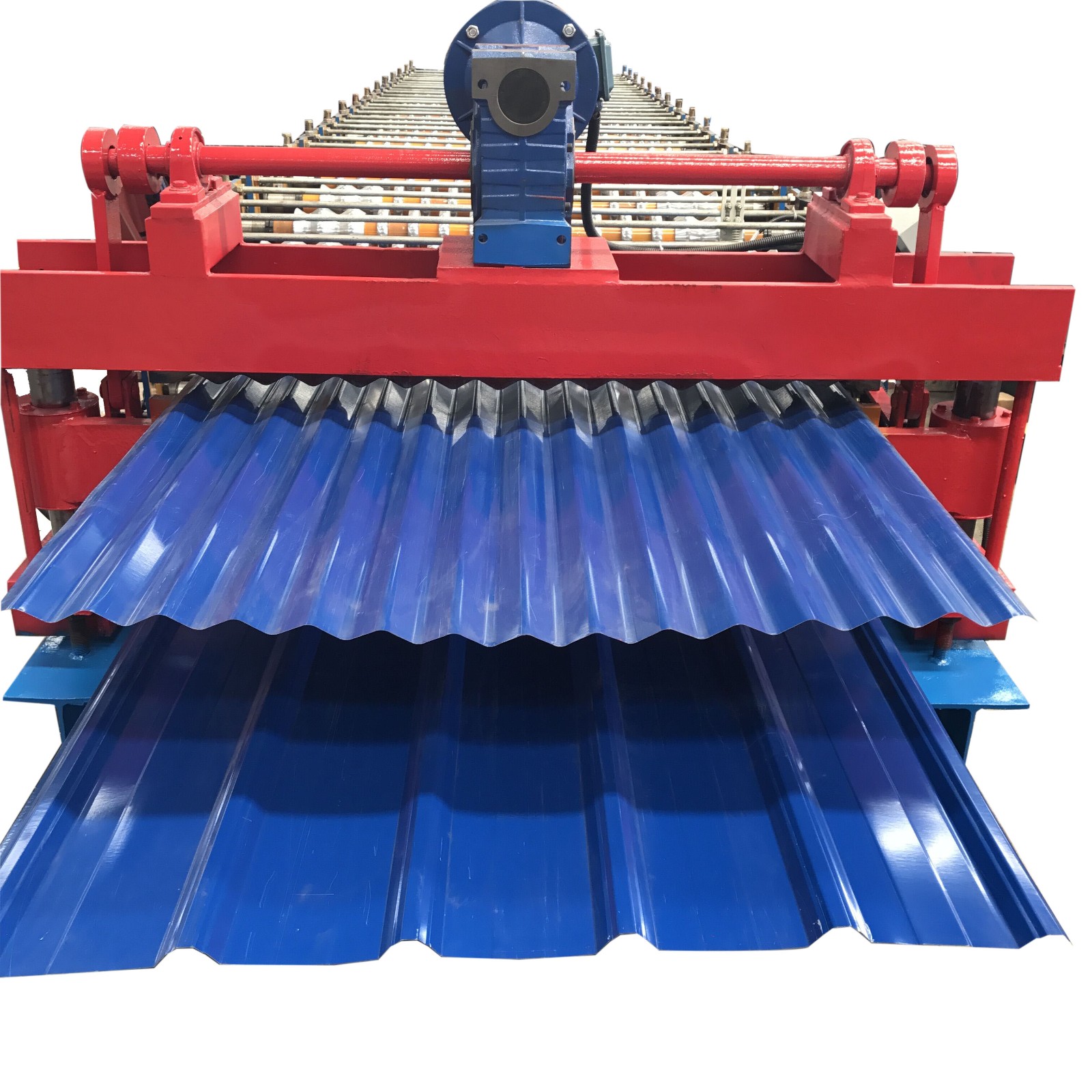

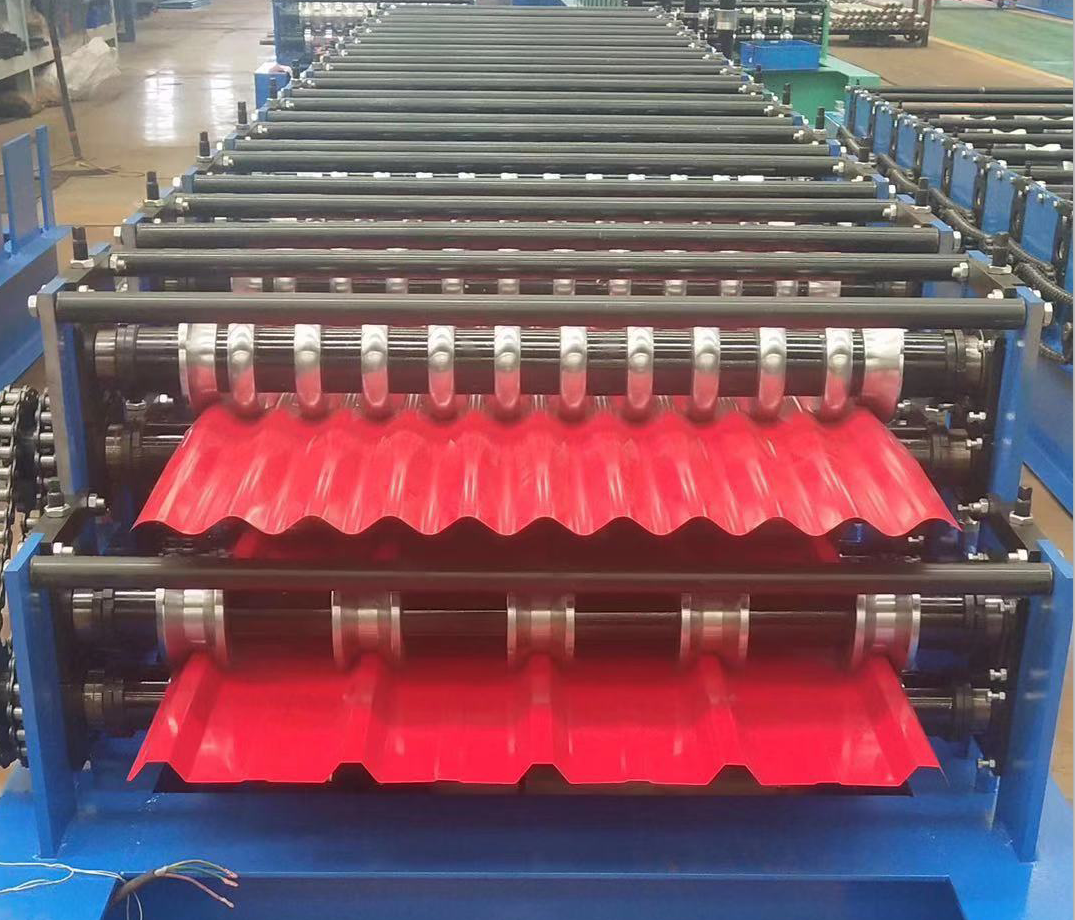

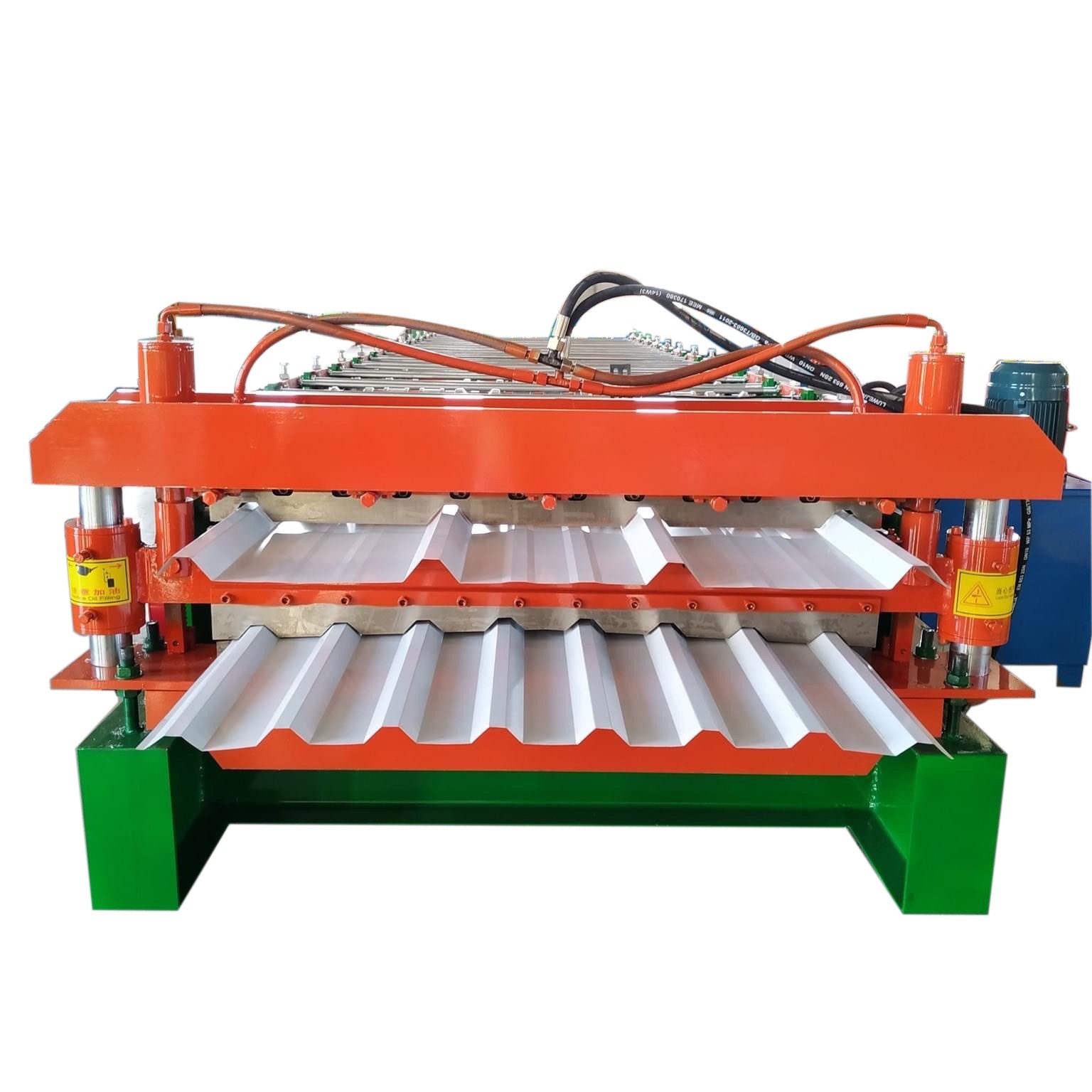

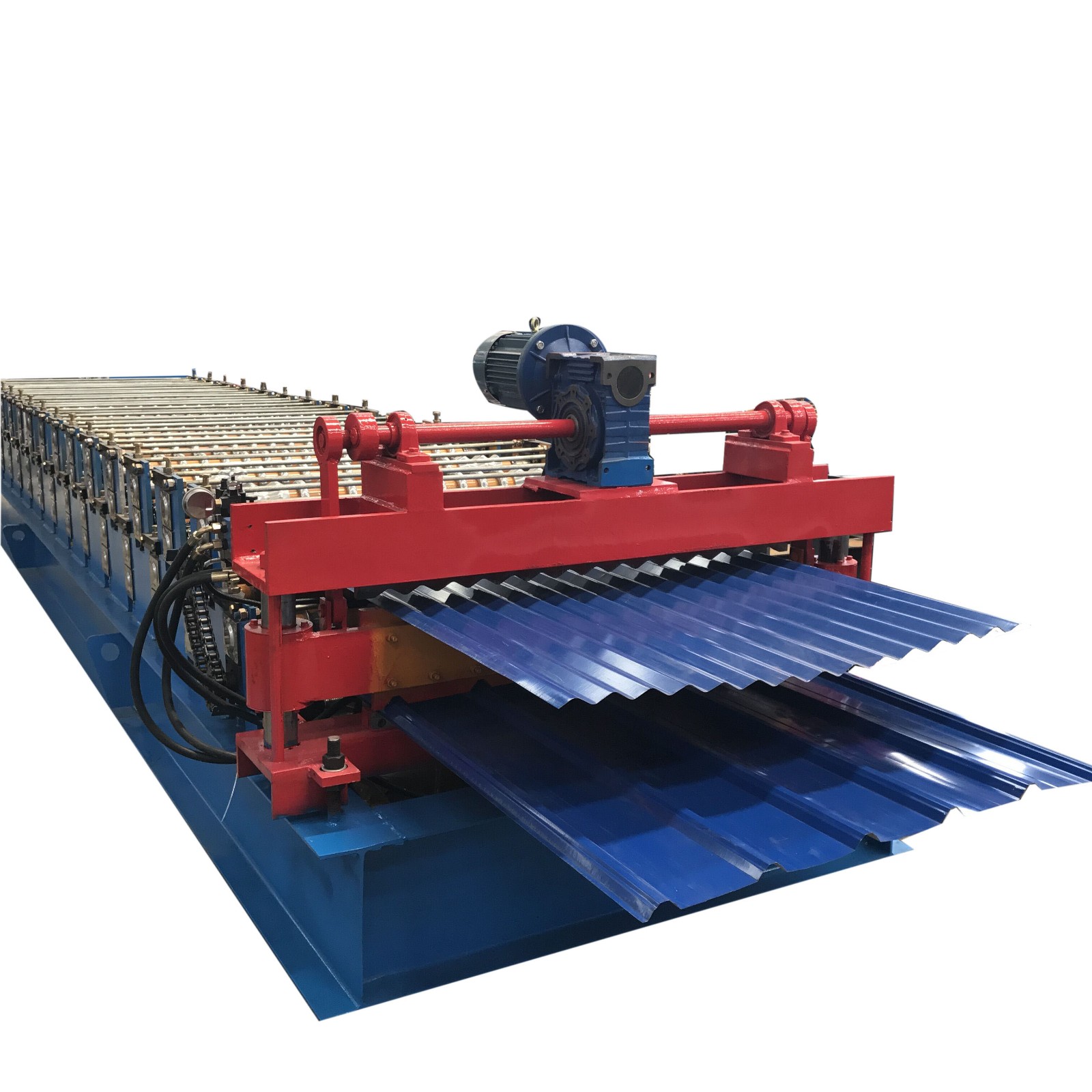

double layers roll forming machine
Inquire Now
None
24h After-Sale Service Hotline: +86 151 3271 2681
we provide 12 months guaranty .
Main components of machine:
a. Main machine 1 set
b. Hydraulic cutter 1 set
c. PLC cabinet 1 set
d. Motor 1 set
e. Pump station 1 set
f. Manual decoiler 1 set
g. Receiving table 2 sets
Process of machine:
1. Technical specifications
NO. | Item | Description |
1 | Material width | According to sizes |
2 | Number of forming steps | 11 and 14 |
3 | Diameter of shaft | 50mm |
4 | Processing material | Steel strips |
5 | Processing thickness | 0.2mm -0.6mm |
6 | Middle plate thickness | 25mm |
7 | Material of shaft | Cr12 steel with tempering |
8 | Cutting type | Hydraulic cutting |
9 | Main motor power | 4kw |
10 | Pump station | 3kw |
11 | Main frame | 300H steel |
12 | Control system | PLC computer |
13 | Brand of electrical system | Delta |
14 | Manual decoiler | 5 tons |
15 | power | 380v,3 phase,50hz |
16 | Dimensions(L*W*H) | 7.0*0.7*1.3M |
2. Components of machine
a.Main machine 1 set
b.Hydraulic cutter part 1 set
c.PLC cabinet part 1 set
d.Motor 1 set
e.Pump station 1 set
f.Manual decoiler 1 set
g.Runout table 2 sets
3. Payment terms
a. Payment terms: 30% T/T deposit in advance and the balance 70% after inspection and before shipment.
b. Warranty: One year. And we will provide the technical support for the whole life.
c. When picking up goods, we will provide the operating instruction book and the element of easy damaging.
d. Delivery time: Within 45 working days after received deposit.
