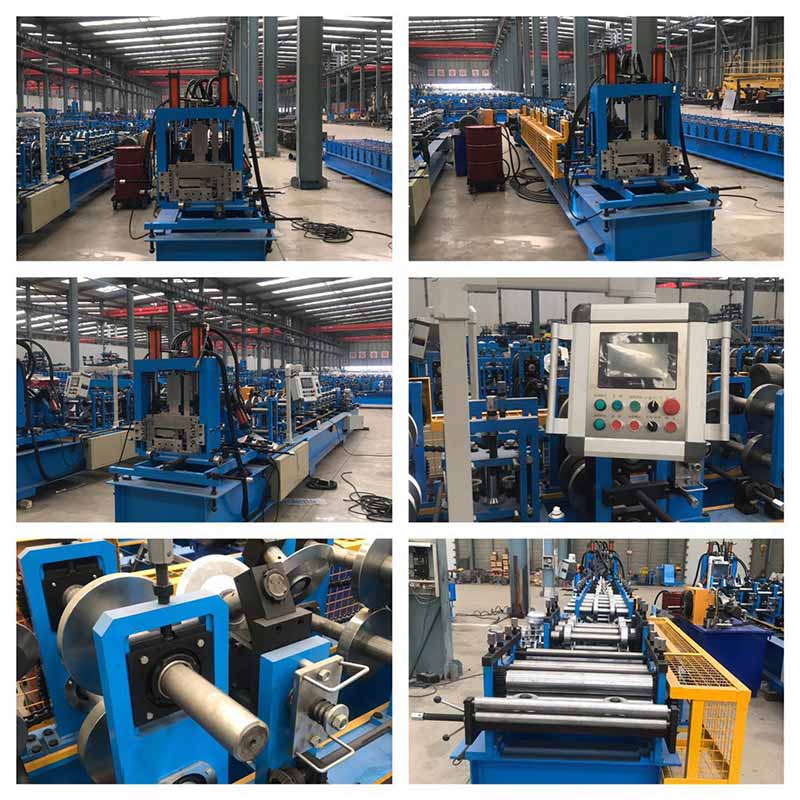

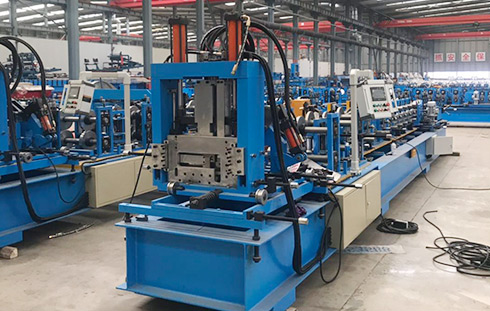

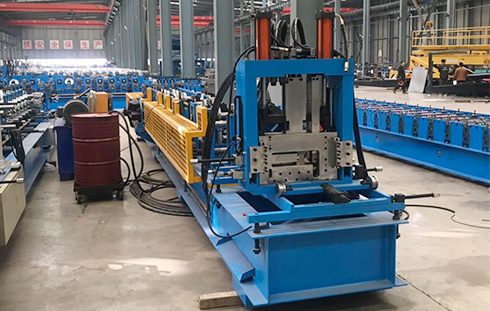

CZ Purline Roll Forming Machine
Inquire Now
None
24h After-Sale Service Hotline: +86 151 3271 2681
Components of machine
a. Main machine 1 set
b. Hydraulic cutter part 1 set

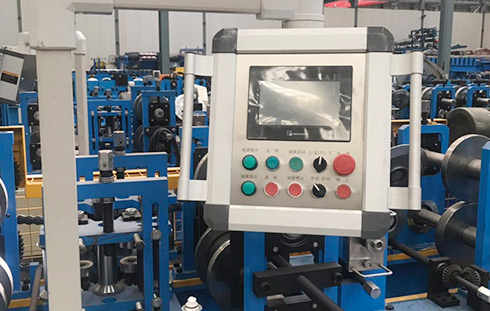

c. PLC cabinet part1 set
d. Motor 1 set
e. Pump station 1 set
f. Manual decoiler1 set
g. Runout table 2 sets
Payment terms
a. Payment terms: 30% T/T deposit in advance and the balance 70% after inspection and before shipment.
b. Warranty: One year. And we will provide the technical support for the whole life.
c. When picking up goods, we will provide the operating instruction book and the element of easy damaging.
d. Delivery time: Within 45 working days after received deposit.
Technical specifications
| NO. | Item | Description |
| 1 | Material width | According to sizes |
| 2 | Number of forming steps | 12 |
| 3 | Diameter of shaft | 80mm |
| 4 | Processing material | Steel strips |
| 5 | Processing thickness | 1.5mm -3.0mm |
| 6 | Middle plate thickness | 16mm |
| 7 | Material of shaft | Cr15 steel with tempering |
| 8 | Cutting type | Hydraulic cutting |
| 9 | Main motor power | 15kw |
| 10 | Pump station | 7.5kw |
| 11 | Main frame | 300H steel |
| 12 | Control system | PLC computer |
| 13 | Brand of electrical system | Delta |
| 14 | Manual decoiler | 5 tons |
| 15 | power | 380v,3 phase,50hz |
| 16 | Dimensions(L*W*H) | 9.0*1.2*1.3M |
